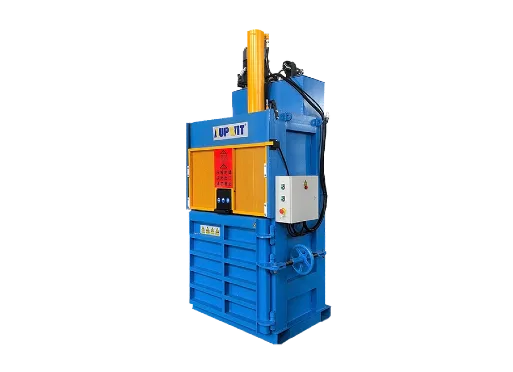

Y82YLG Cans/ PET Bottle Baler

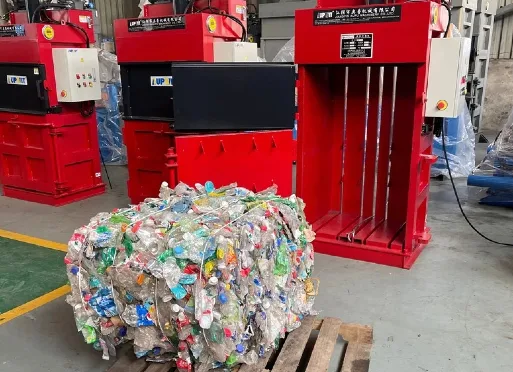

The Cans/PET Bottle Baler compresses waste cans and PET bottles into dense bales, reducing volume to save storage and transport costs. Easy to operate, it’s ideal for recycling stations, supermarkets and catering venues.

Inquire Now
  • Product Description
  • Product Features
  • Specifications
  • Manufacturing Process

Product description

Specially used for recycling the cans, PET bottles, oil tank etc. The long ram makes sure the bottles or cans that in the bottom can be efficiently compressed. Liquid receiver is optional for collecting the liquid residues from the compressing containers.

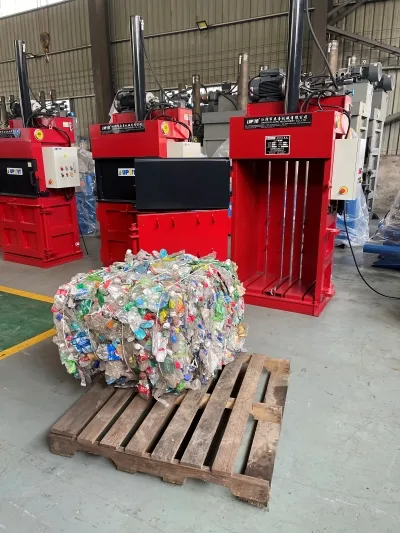

Product Features

● Automatic chain bale ejector for quickly and easily ejecting the bales out from the machine
● The ram will stop running downwards when the feeding gate is opened which ensure the safety of the operation
● Equipped with independent emergency stop for safe operation
● Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
● Special ram guides design makes the platen not slope because of uneven materials feedings during compression
● Equipped with NOK seals that from Japan means longer lifespan of the seals
● Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
● Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentricity, which replacing the common coupling connection so that extend the lifespan of the pump

Specifications

MODELY82YLG-30Y82YLG-40Y82YLG-50Y82YLG-80
Pressure30tons40tons50tons80tons
Feed opening size(L * H)800*500mm1000*500mm1100*500mm1200*500mm
Baling Chamber Height1500mm1500mm1500mm1700mm
Bale Size(L*W*H,H is adjustable)800*600*(200-1000)mm1000*600*(300-1000)mm1100*700*(300-1000)mm1200*800*(300-1200)mm
Bale Weight30-120kgs60-180kgs90-270kgs200-380kgs
Power5.5kw7.5kw11kw15kw
Machine Weight1400kgs1700kgs1900kgs2500kgs
Machine Overall Dimension1280*850*3300mm1480*1000*3400mm1600*1100*3500mm1700*1200*3900mm

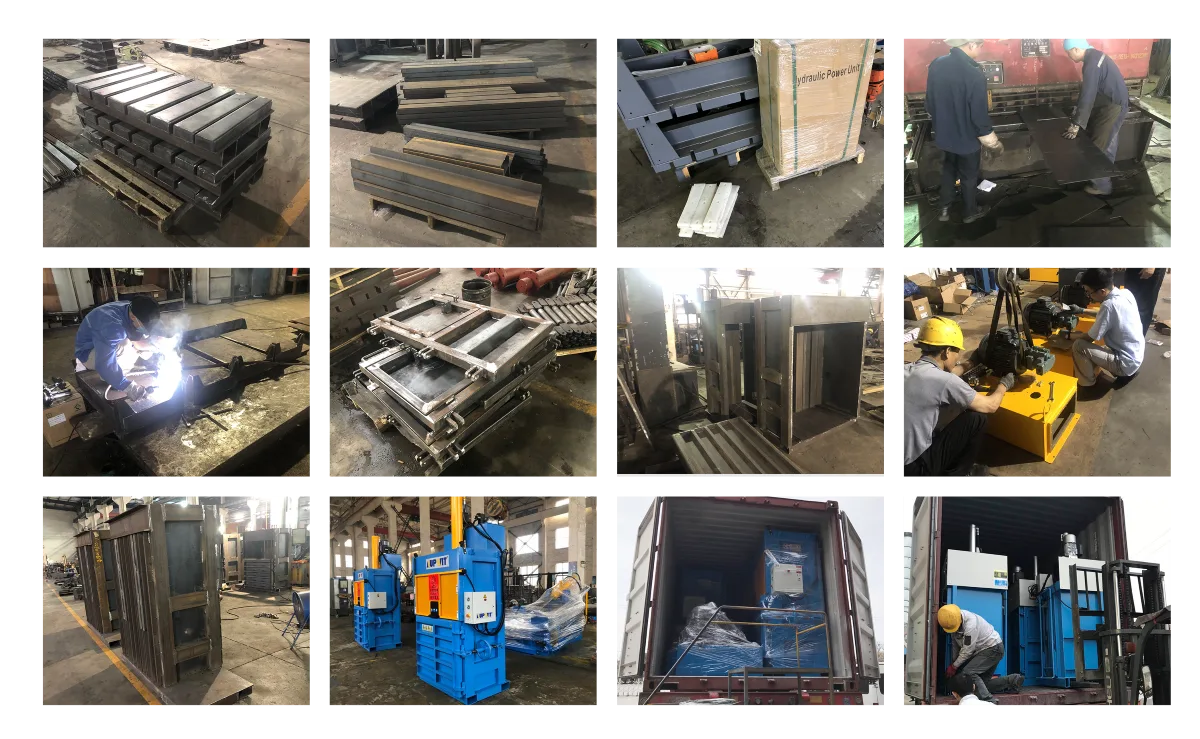

Manufacturing Process
