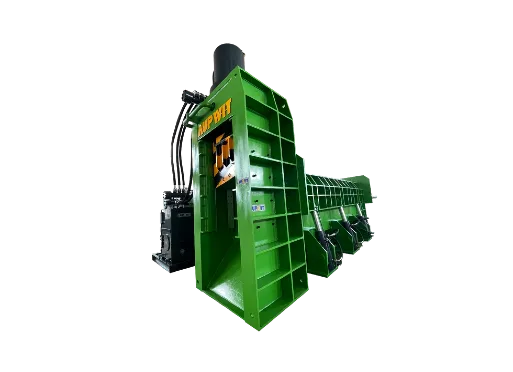

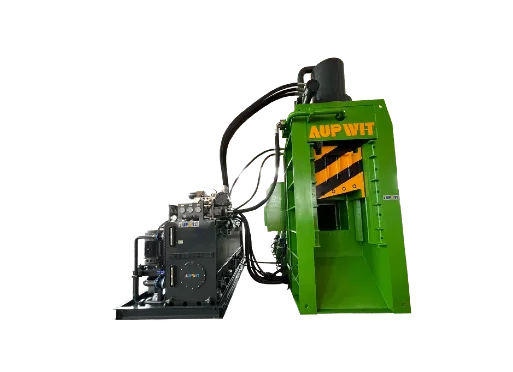

HBS Shear Baler

HBS series heavy type shear baling machine is used for compression packing and shearing of various light and thin materials, scrap steel for production and domestic use, light metal structural parts, various plastic non-ferrous metals (stainless steel, aluminum alloy, copper, etc.); or for the above scrap Compress directly.

Inquire Now
  • Product Description
  • Specifications
  • Advantages
  • Product Video
  • Product in Use

Product description

HBS series shear balers are suitable for cutting various light and thin scrap materials, such as the shell of scrapped vehicles, light metal structural parts. Metal pieces are pressed 2-0r-3-dimensionally by using the pressing lid, wing and feeding pusher, and cut or broken into pieces.

Key Features:

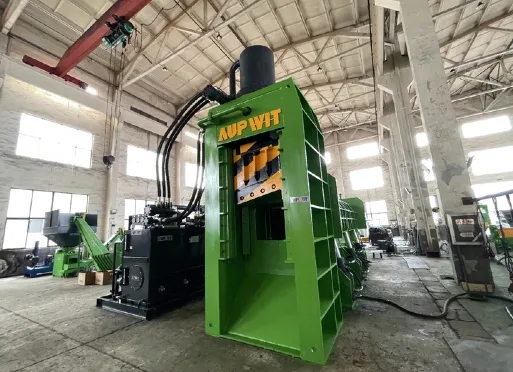

Pre-Compress and Cut Scrap
Bulky scrap materials are effectively compacted before cutting, maximizing processing efficiency and reducing material volume for easier handling and transportation.

Cut Bars and Profiles
Metal bars, beams, and structural profiles are precisely cut into uniform lengths, ensuring clean and accurate cuts for further recycling or repurposing.

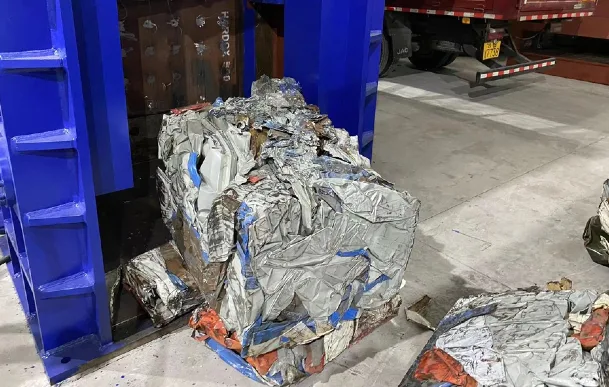

Package Light Scrap
Lightweight scrap materials are compacted to improve storage and logistics efficiency, enhancing scrap density to make transportation more cost-effective.

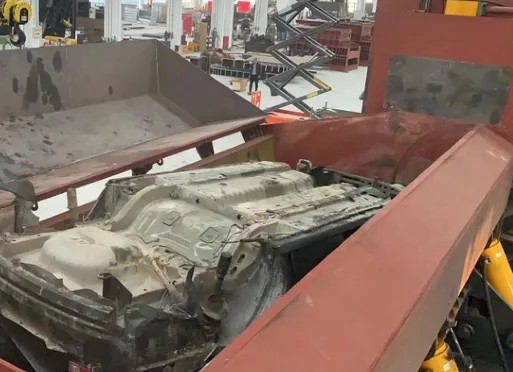

Squeeze and Cut Car Bodies
Large automotive scrap is efficiently squeezed and cut, facilitating the recycling process by reducing vehicle structures into smaller, manageable pieces.

Specifications

TypeHBS-315HBS-400HBS-500HBS-630HBS-800
Max Shear Pressure (KN)31504000500063008000
Feeding Size(mm)3000x1200x7004000x1200x8006500x2500x7506000x2500x7006000x2500x720
Bale Section(mm)400*400700*500750*650720*650840*650
Blade Length/Opening(mm)550/500620/600850/760800/720800/720
Shear Frequency
(times/min)
3-4
Motor (kw)6037*345*345*455*4
Control SystemPLC Automatic Control+Remote control

Advantages

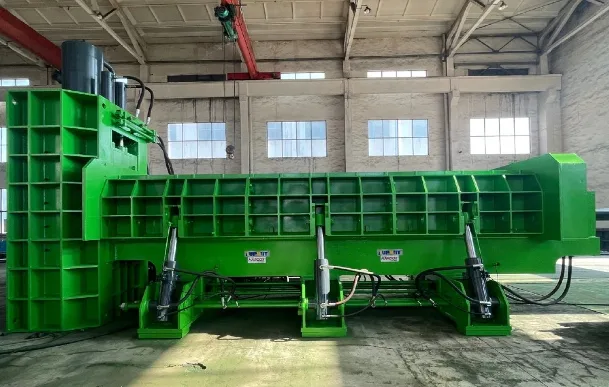

Large chamber size with top feeding hopper

High density bales come out

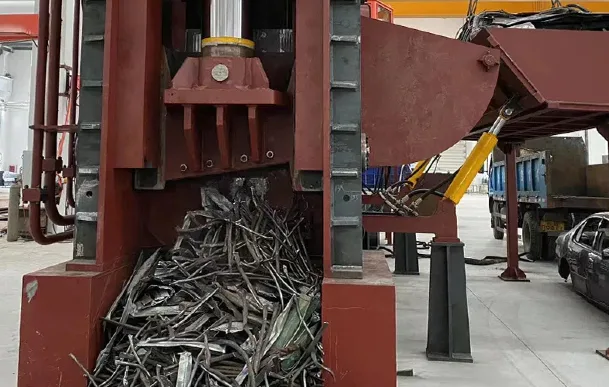

Both cutting and baling functions in one machine

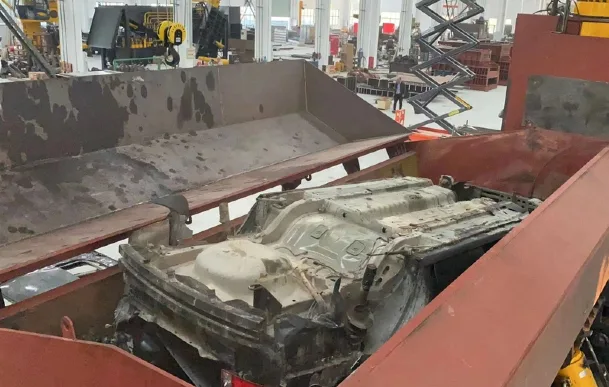

A whole car can feed inside and compress into tight bale

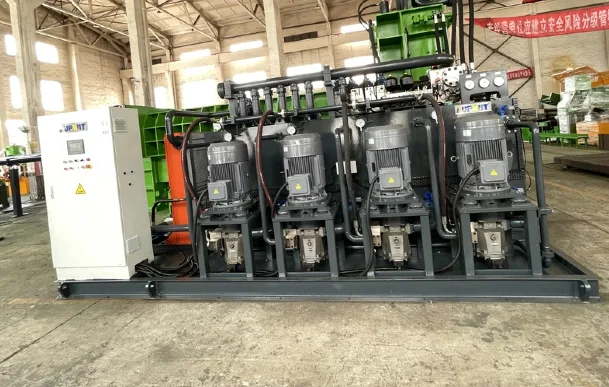

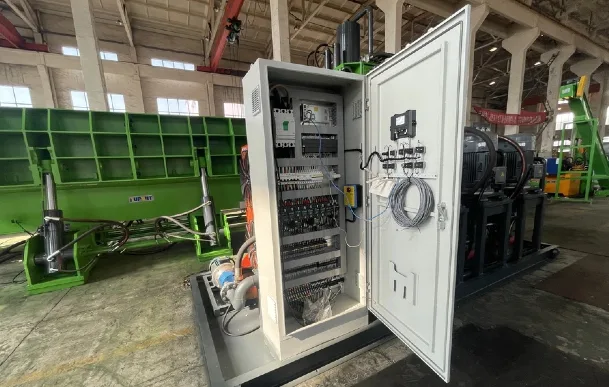

Hydraulic drive, PLC control

User friendly and easy for overload protection

Product Video

Product in Use

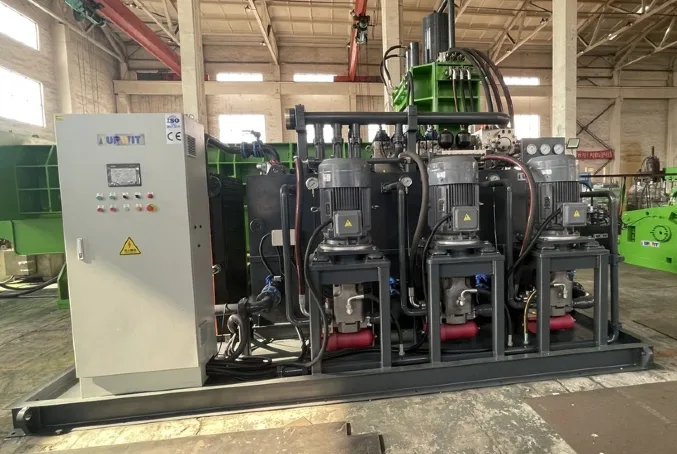

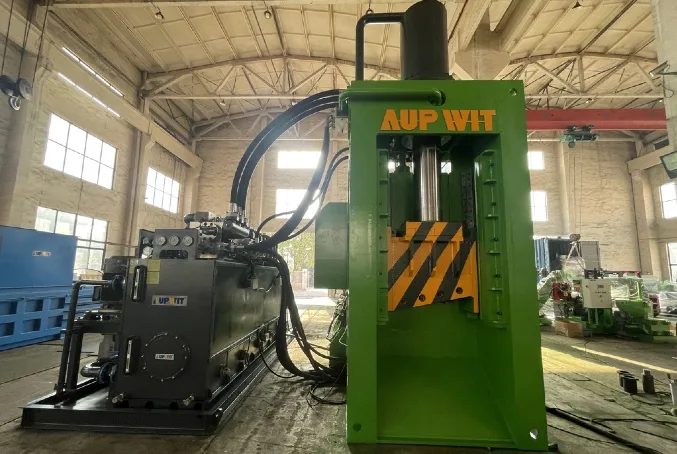

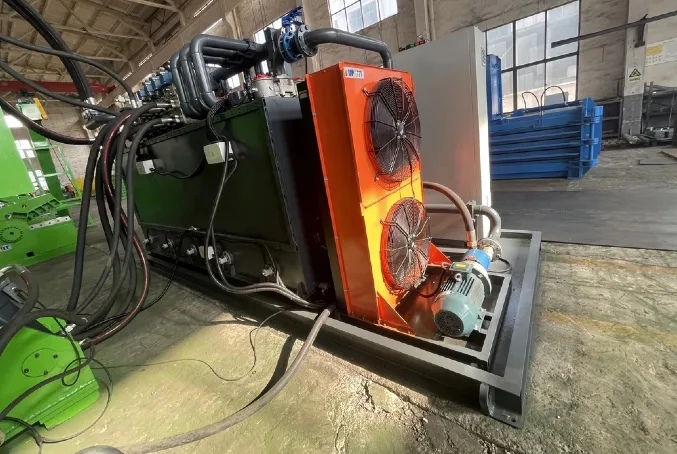

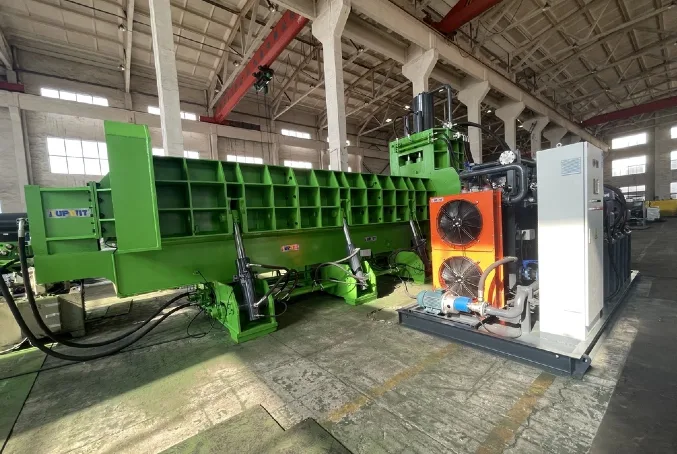

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

Shear Baler HBS500

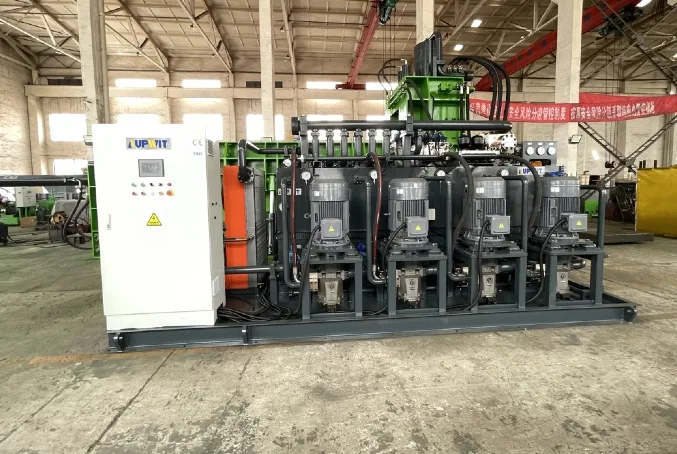

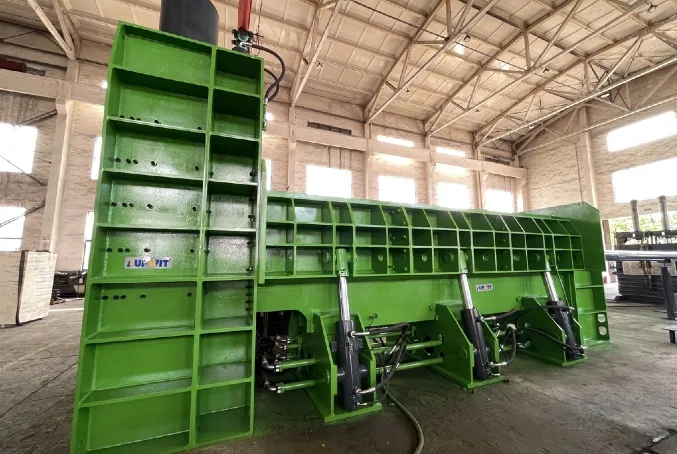

Shear Baler HBS630

Shear Baler HBS630

Shear Baler HBS630

Shear Baler HBS630

<
>
