Ideal for briquette small chip volumes in the metalworking fields
briquette formats: Ø 70-80 mm
throughput rate (Aluminium): 20-40 kg/h
throughput rate (Steel & Castings): 80-100 kg/h

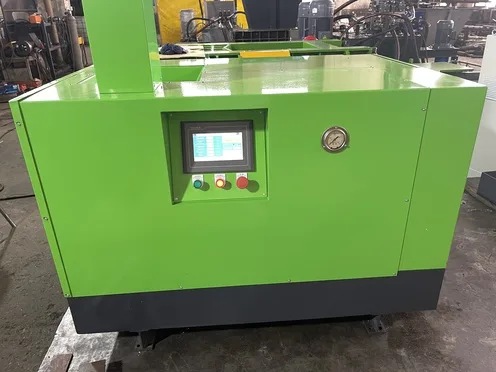

Inquire NowA Small Briquetting Press is a compact and efficient machine designed for processing small quantities of chip materials, particularly in metalworking, by compressing them into high-density briquettes.
These machines are ideal for small to medium-sized manufacturing companies or for direct integration with machining centers. Throughput capacities are from 40kg/hour to 100kg/hour.

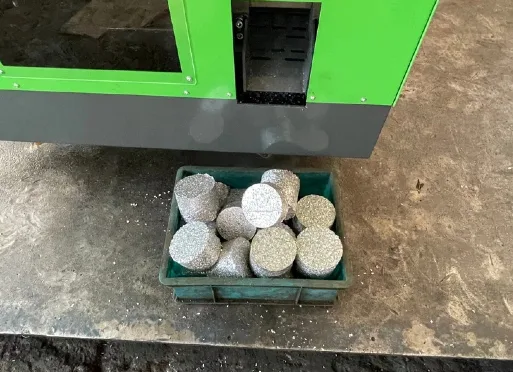

As a standalone system or integration into existing production line, they serve as an entry-level solution for briquetting, offering a stable and cost-effective way to manage metal scraps and other materials. They produce uniform, high-density briquettes that are easy to stack and store, reducing waste volume and improving material handling.
These Y85-50 small briquetting presses can operate continuously and unattended, including 24/7, especially when directly linked to machining centers' chip chutes.
| Model | System pressure | Briquette formats (mm) (Iron/Aluminium) | Iron | Aluminium | Motor power |
|---|---|---|---|---|---|
| Y85-50 | 25Mpa | 70/80 | 80~100 | 20~40 | 3.7KW+1.5KW |
| Y85-80 | 25Mpa | 70/80/90 | 120~180 | 45~100 | 7.5KW+1.5KW |
| Y85-130 | 25Mpa | 80/90 | 150~210 | 75~120 | 11KW+1.5KW |
| Y85-160 | 25Mpa | 90/100 | 180~280 | 110~150 | 22KW+2.2KW |
| Y85-200 | 25Mpa | 100/110 | 300~410 | 150~225 | 30KW+2.2KW |
| Y85-250 | 25Mpa | 100/120 | 480~680 | 250~320 | 30KW+2.2KW |
| Y85-315 | 25Mpa | 110/130 | 560~750 | 275~350 | 37KW+2.2KW |
| Y85-400 | 25Mpa | 120/140 | 650~825 | 275~350 | 37KW+2.2KW |
| Y85-500 | 25Mpa | 140/160 | 750~1000 | 275~350 | 2*30KW+2.2KW |
| Y85-630 | 25Mpa | 160/200 | 890~1500 | 275~350 | 2*37KW+3KW |
The continuous material circulation prevents material bridging and breaks up lumps.

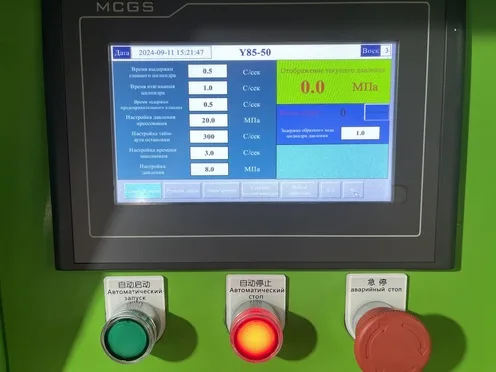

The integrated Siemens PLC control is perfectly adapted for the briquetting process, allowing for easy adjustments to various settings based on the specific application requirements.
To guarantee that the electronics are perfectly suited for the machine, we fully design, construct, and wire our control cabinets in-house. All control cabinets are using international standard parts.

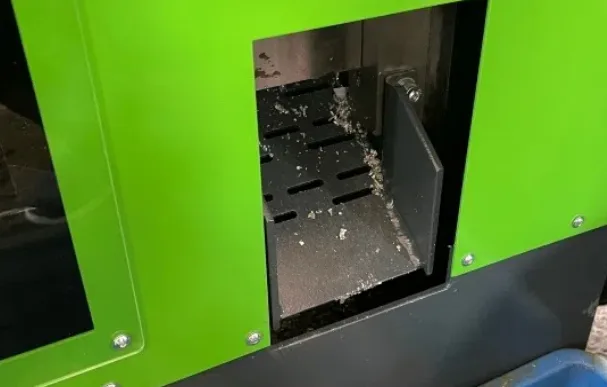

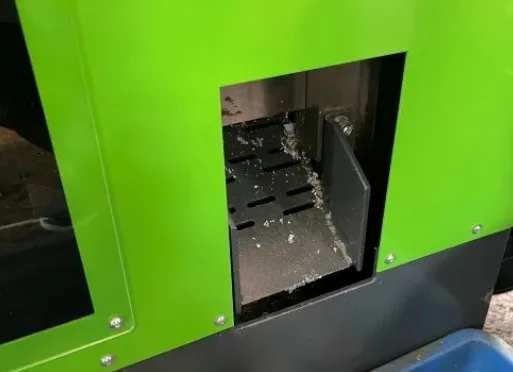

Slope design for the feeding-out hopper to ensures quick automatic release of end briquettes.
