Mini Shear

The Mini Shear is designed for processing lightweight materials and various scraps. It efficiently shears a range of materials—including thin lightweight materials, production and civil scrap steel, light metal structural parts, plastics, and non-ferrous metals (such as stainless steel, aluminum alloy, and copper). With its small footprint and easy operation, it is ideal for small-scale recycling stations, civil waste disposal scenarios, and small-batch processing workshops.

Inquire Now
  • Product Description
  • Specifications
  • Product Features
  • Product Video
  • Detailed Display

Product description

The Y85-50 briquetting press machine is ideal for briquette small chip volumes in the metalworking fields.

Throughput capacities are from 40kg/hour to 100kg/hour.

As a standalone system or integration into existing production line, this presents an solution for metalworking companies to reduced volumes with a compact, low cost system.

Metal Balers

The increasing demands of the scrap processing industryrequire a wider range of solutions to meet specific capacityneeds.AUPWIT offers multiple hydraulic metal scrap balers forextruding various metal leftover materials, steel parting, wastecopper, aluminum, copper, stainless steel and scraped carmaterial into qualified charging such as square column,cylinder, octagon body and other sharps. lt is suitable for scrapsteel processing and distribution center (base), scrap cardismantling and remanufacturing enterprises, steel and nonferrous metal industries, etc.

Specifications

Model System pressure Briquette formats (mm) (Iron/Aluminium) Iron Aluminium Motor power
Y85-50 25Mpa 70/80 80~100 20~40 3.7KW+1.5KW
Y85-80 25Mpa 70/80/90 120~180 45~100 7.5KW+1.5KW
Y85-130 25Mpa 80/90 150~210 75~120 11KW+1.5KW
Y85-160 25Mpa 90/100 180~280 110~150 22KW+2.2KW
Y85-200 25Mpa 100/110 300~410 150~225 30KW+2.2KW
Y85-250 25Mpa 100/120 480~680 250~320 30KW+2.2KW
Y85-315 25Mpa 110/130 560~750 275~350 37KW+2.2KW
Y85-400 25Mpa 120/140 650~825 275~350 37KW+2.2KW
Y85-500 25Mpa 140/160 750~1000 275~350 2*30KW+2.2KW
Y85-630 25Mpa 160/200 890~1500 275~350 2*37KW+3KW

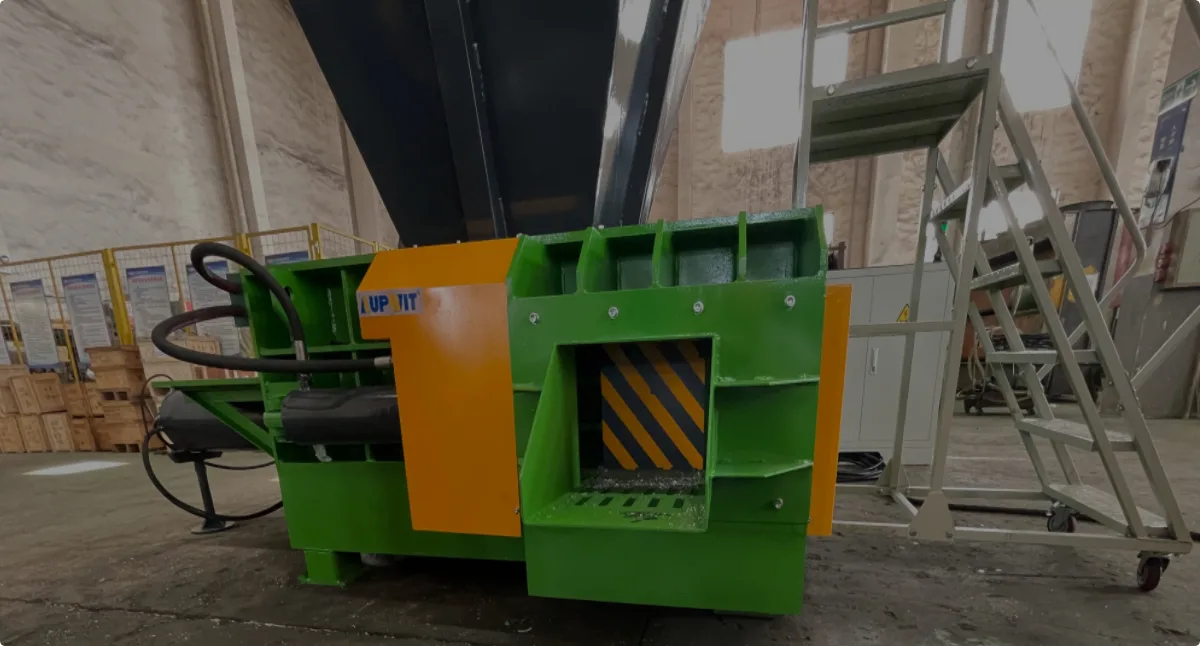

Product Video

Detailed Display

Uniform material transport into the screw channel

The continuous material circulation prevents material bridging and breaks up lumps.

Simple machine operation with high-quality PLC control

The continuous material circulation prevents material bridging and breaks up lumps.

Siemens/Schneider PLC automatic control system

The continuous material circulation prevents material bridging and breaks up lumps.

Related products

<
>

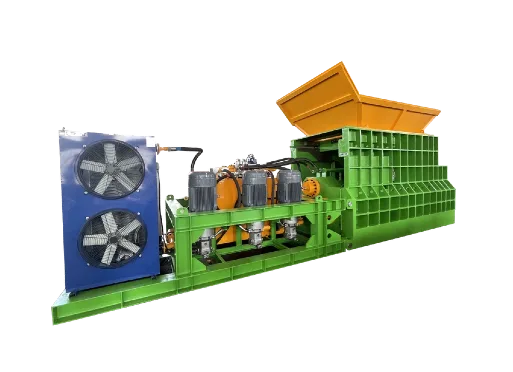

Container Shear
