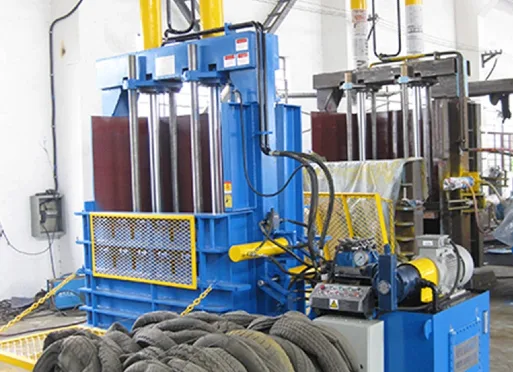

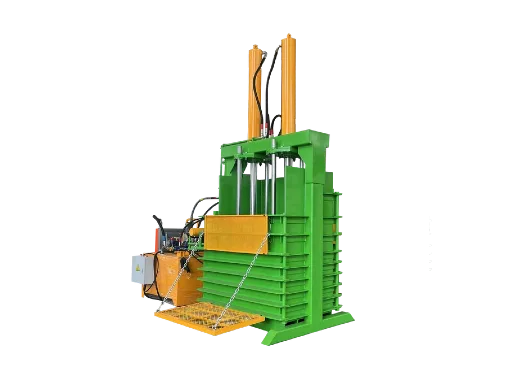

Y82LT Tire Baler

High Compressive Force
Reinforced and Robust Construction
Specialized Chamber Design
Volume Reduction Up to 80%

Inquire Now
  • Product Description
  • Product Features
  • Advantages
  • Specifications
  • Product Video
  • Successful Cases

Product description

Usage
Specially designed for compressing rubber products like car tires, truck tires, bus tires etc.

Product Features

● Hydraulic-driven opening door ensures operational safety and easier opening& closing
● Two split platens with movable links to protect the platen from being distorted when pressing uneven materials like rubber tire etc
● Whole system manual control to make sure durability and simple operation
● Retractable retainer claws prevent the compacted bales to rebound
● Employ whole set Taiwan hydraulic system
● Mainly use Schneider electric components
● Employ Japanese A.M.C. oil pipe joint makes sure no oil leakage
● Auto chain bale ejector for easy operation and greater efficiency ( the bale can be automatically ejected out by the lifting chains)
● Front & Back opening doors for convenient strapping and bale ejecting

Advantages

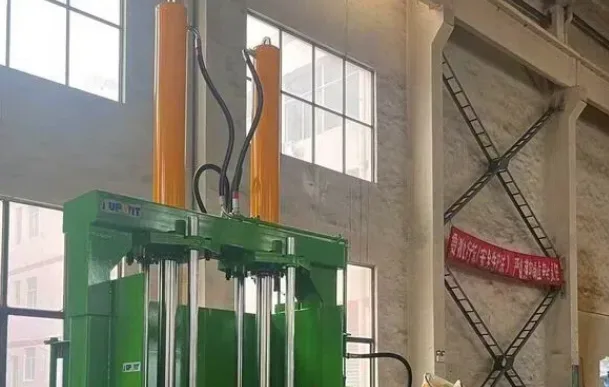

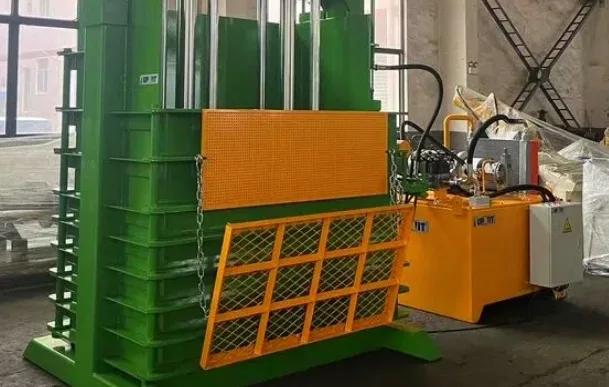

Two split platens with movable links

Protect the platen from being distorted when pressing uneven materials like rubber tire etc

Auto chain bale ejector

Chain bale ejector for easy and effcient bale ejecting with the lifting of the chain

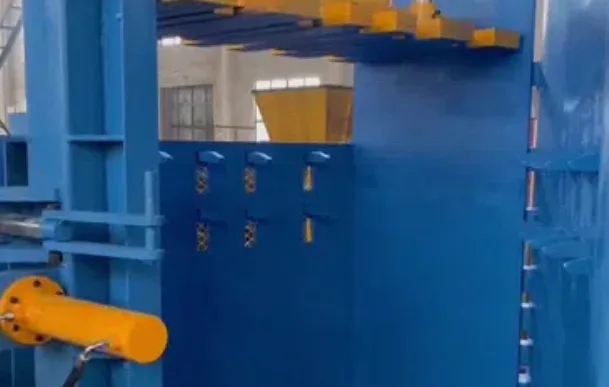

Retractable retainer claws

Retractable retainer claws prevent the compacted bales to rebound

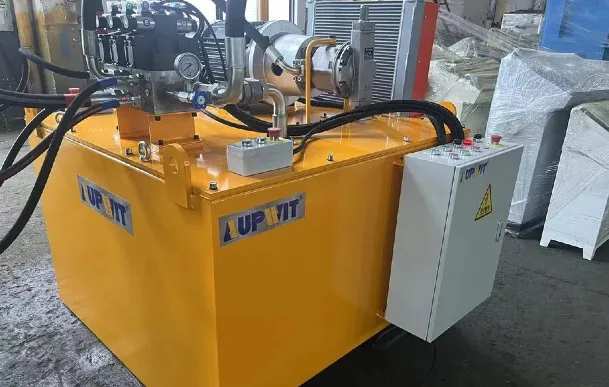

Custom designed power unit

It reduces power consumption and noise level while providing exceptional performance

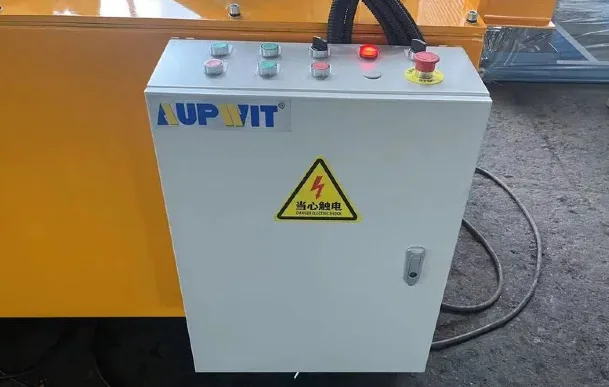

Control cabinet

Easy to operate controls with buttons

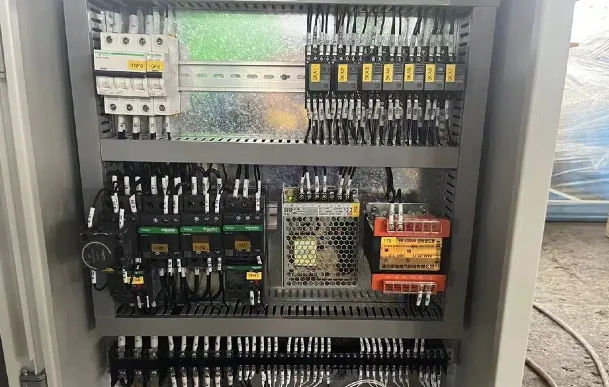

Schneider electric components

Ideal for transport

It produces standard-sized tire bales will easily reach a 40ft container weight limit in tires, which improves transport efficiency

Specifications

ModelBale size(mm)Bale weight (Kg)Matched capacity(KW)Production efficiency(T/hour)Operating mode
Y82-100LT1550*760*1000≥1000113-3.5Manual operation
Y82-150LT1800*1000*1000≥130018.54-4.5
Y82-100LTZ1550*760*1000≥1000114-4.5Semi-automatic
button operation
Y82-150LTZ1800*1000*1000≥130018.55~6

Product Video

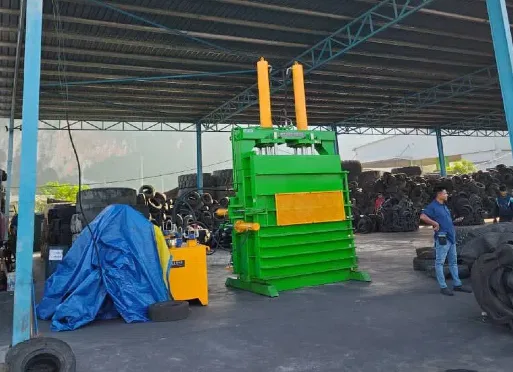

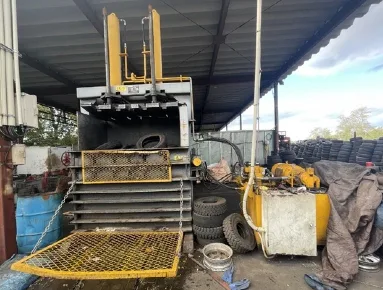

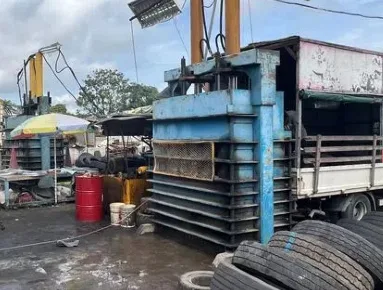

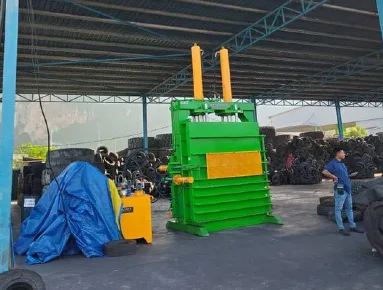

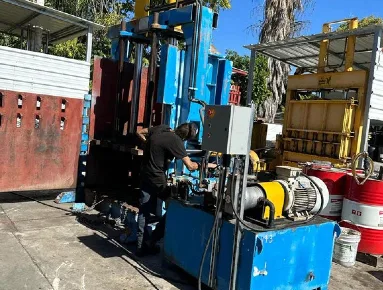

Successful Cases

From Chaos to Cubes: Efficiently densify thousands of scrap tires for maximum storage
